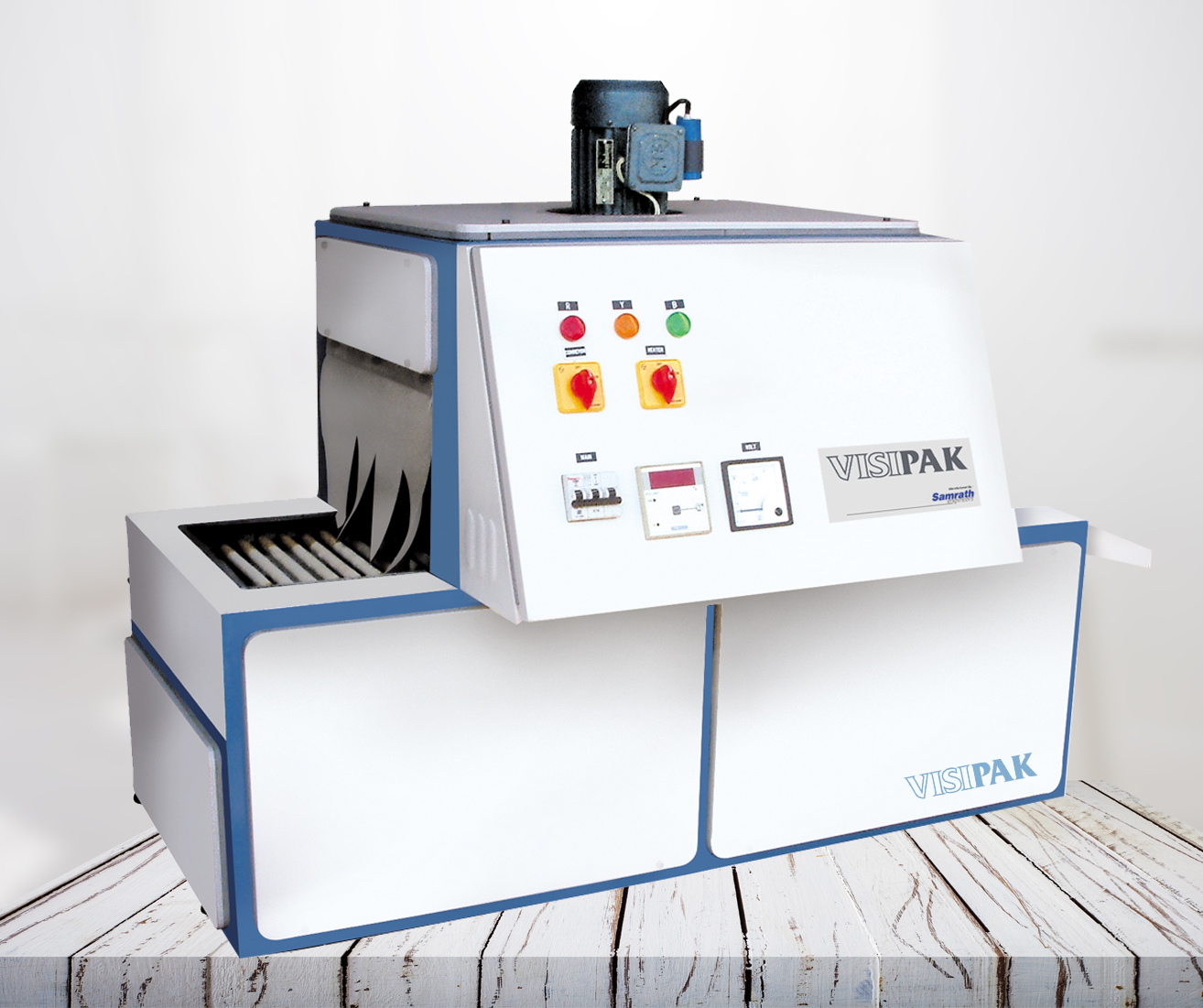

Shrink Tunnel Machines
General Features
- Sturdy Construction.
- Adequately Insulated Chamber.
- Thermostatically Control Heater (Digital Temperature Controller).
- Tunnel opening shall be provided with heat-resistant silicon cloth.
- Conveyor pipe coupled with chain.
- Wire mesh & Flat conveyor available on request.
- Variable conveyor speed.
- Silicon tube on conveyor pipe.
| Model | Size Of Tunnel | Temp | Power |
|---|---|---|---|
| SE-3 | 26″ X 12″ X 8″ | 50-250 | 5kw, 415v AC 3ø + Neutral 50Hz |
| SE-4 | 36″ X 16″ X 12″ | 50-250 | 8kw – 9kw, 415v AC 3ø + Neutral 50Hz |
| SE-5 | 26″ X 12″ X 8″ | 50-250 | 18kw, 415v AC 3ø + Neutral 50Hz |
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

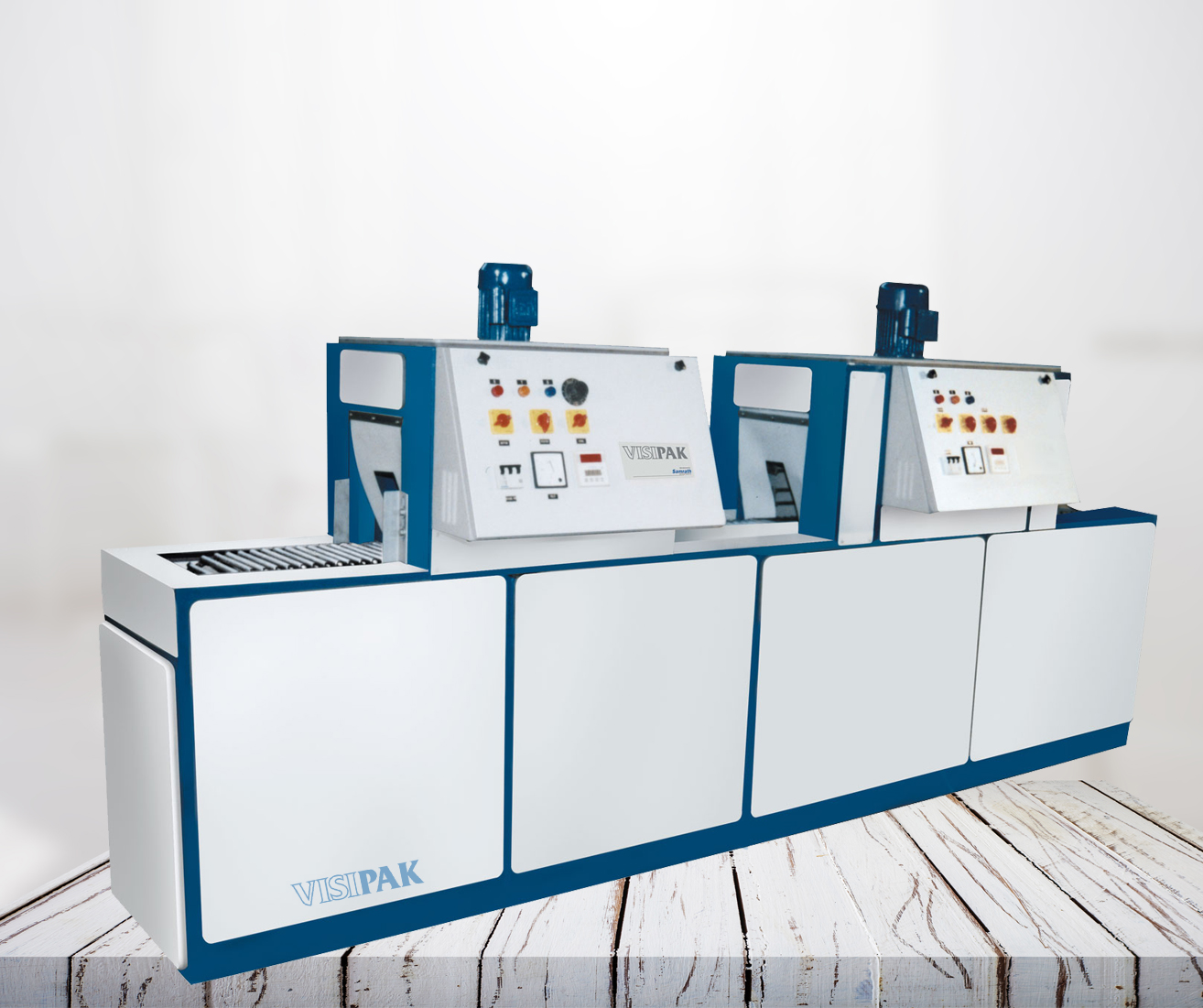

Dual Tunnel Machines
General Features
- Sturdy Construction.
- Adequately Insulated Chamber.
- Thermostatically Control Heater (Digital Temperature Controller).
- Tunnel opening shall be provided with heat resistant silicon cloth.
- Conveyor pipe coupled with chain.
- Wire mesh & Flat conveyor available on request.
- Variable conveyor speed.
- Silicon tube on conveyor pipe.
| Model | Size Of Tunnel | Temp | Power |
|---|---|---|---|
| SE-3 | 26″ X 12″ X 8″ | 50-250 | 5kw, 415v AC 3ø + Neutral 50Hz |
| SE-4 | 36″ X 16″ X 12″ | 50-250 | 8kw – 9kw, 415v AC 3ø + Neutral 50Hz |
| SE-5 | 41″ X 21″ X 21″ | 50-250 | 18kw, 415v AC 3ø + Neutral 50Hz |
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

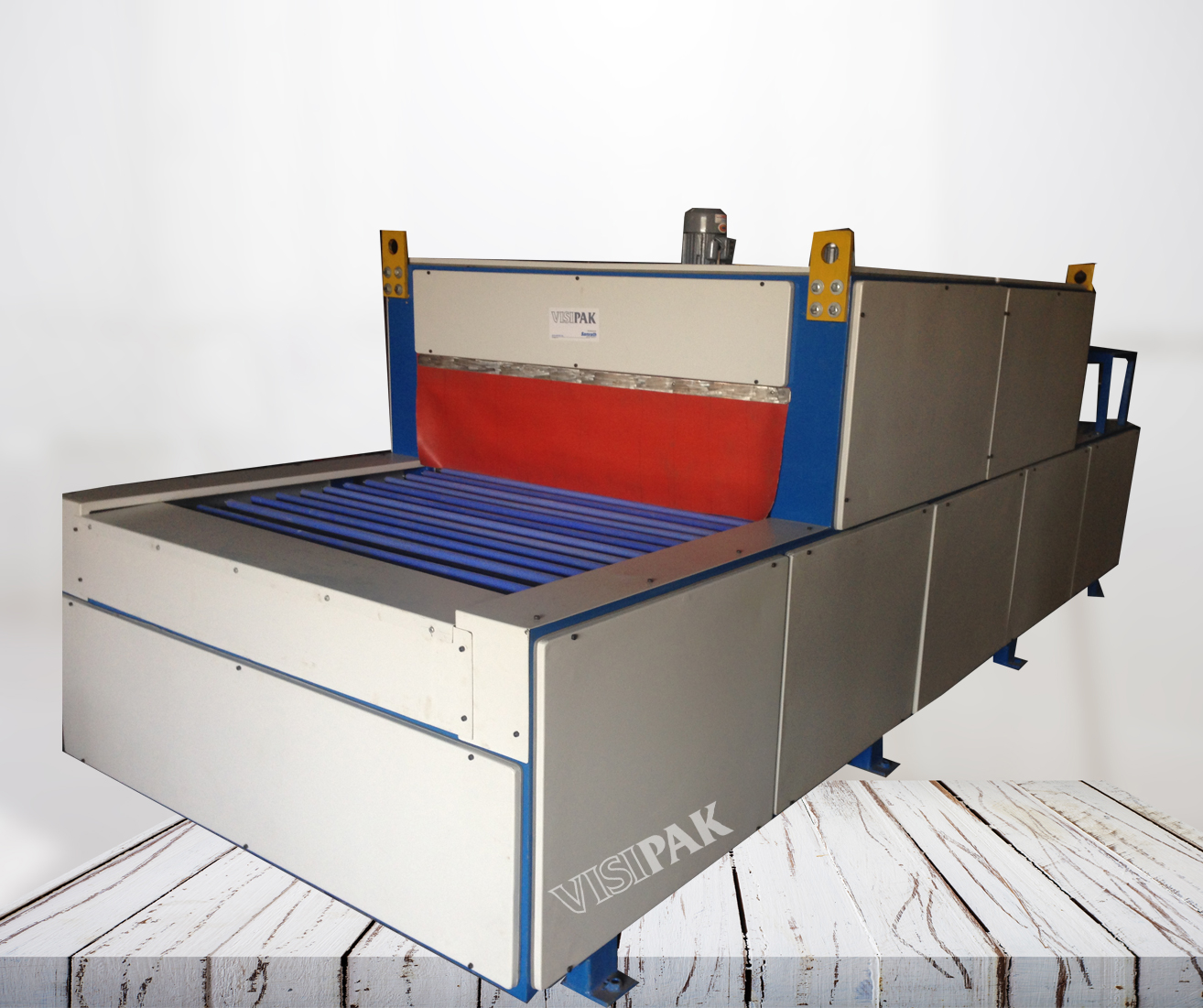

Large Tunnel Machine
General Features
- Sturdy Construction.
- Adequately Insulated Chamber.
- Thermostatically Control Heater (Digital Temperature Controller).
- Tunnel opening shall be provided with heat resistant silicon cloth.
- Conveyor pipe coupled with chain.
- Wire mesh & Flat conveyor available on request.
- Variable conveyor speed.
- Silicon tube on conveyor pipe.
| Model | Size Of Tunnel | Temp | Power |
|---|---|---|---|
| SE-3 | 26″ X 12″ X 8″ | 50-250 | 5kw, 415v AC 3ø + Neutral 50Hz |
| SE-4 | 36″ X 16″ X 12″ | 50-250 | 8kw – 9kw, 415v AC 3ø + Neutral 50Hz |
| SE-5 | 41″ X 21″ X 21″ | 50-250 | 18kw, 415v AC 3ø + Neutral 50Hz |
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

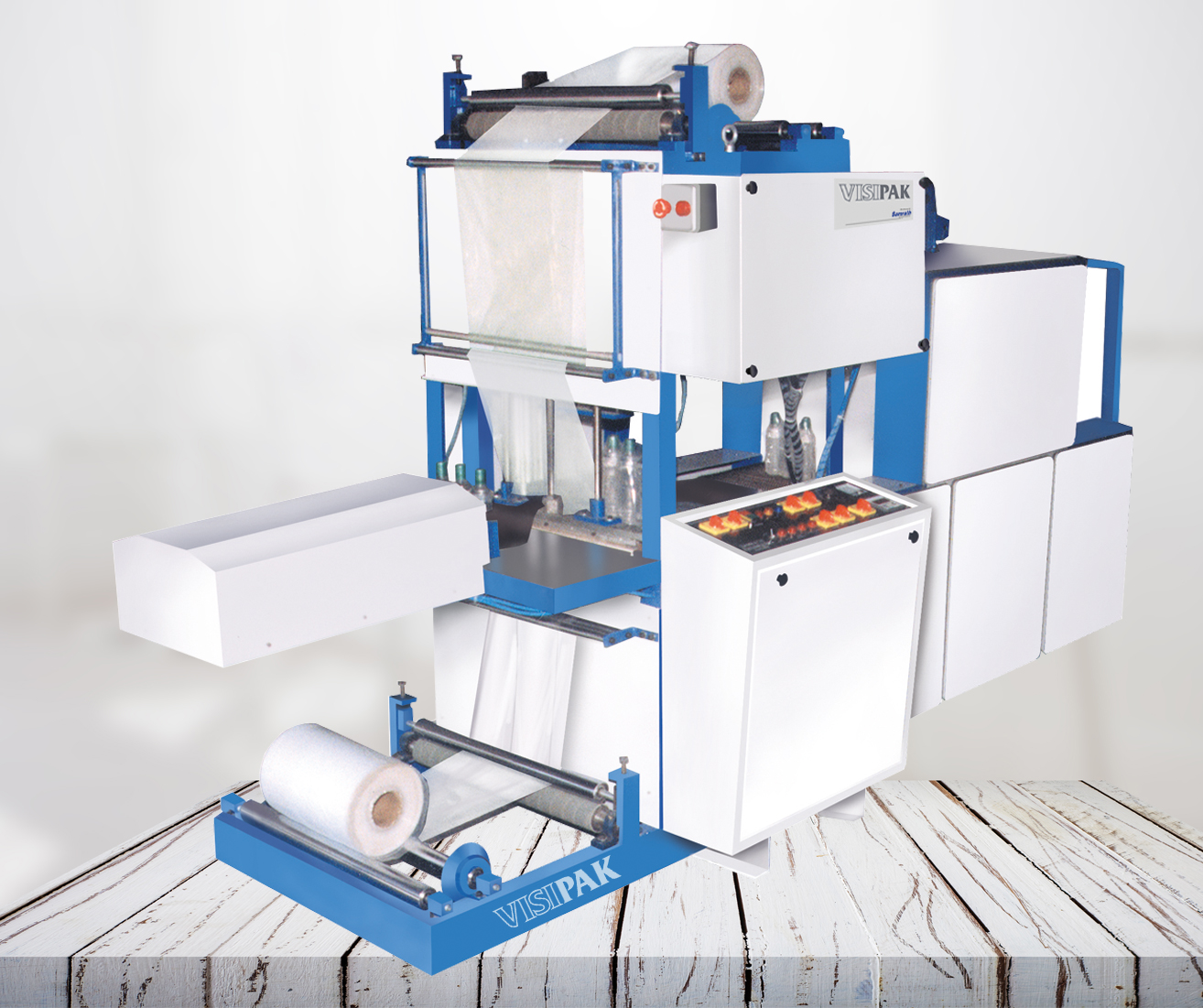

Automatic Web Sealer
General Features
- Product Tray infeed conveyor.
- Positive Film Unwinding.
- Auto Wrapper/Sealer (Web Sealing).
- Constantly Heated Knife Sealing.
- 8 to 10 Packs Per Minute Output.
- Shrink Tunnel with Cooling Zone.
- Available in Different Sizes.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

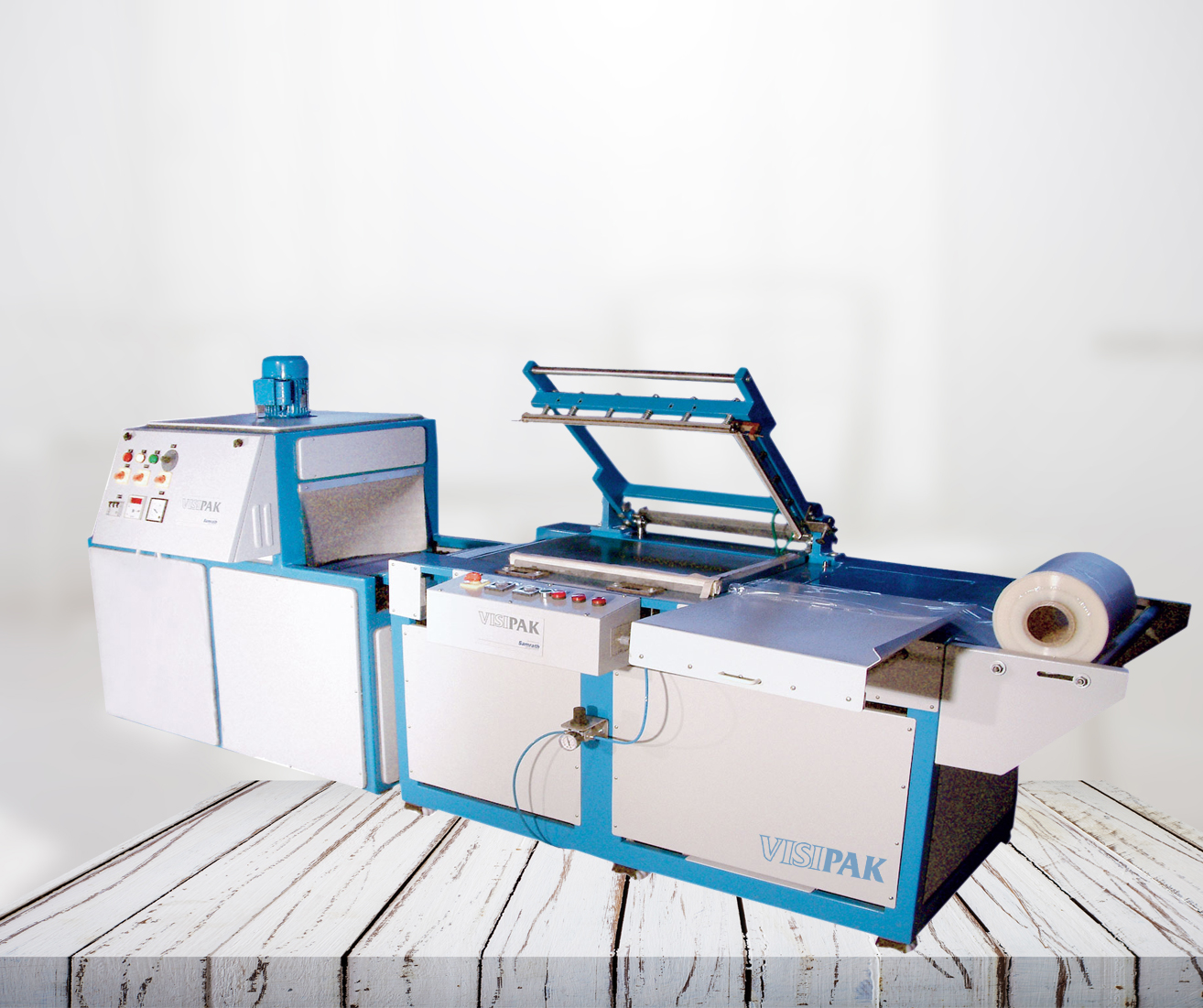

L-Sealer with Tunnel
General Features
- Sturdy Construction.
- Manual/Auto Feed in to tunnel.
- Manual Operated Sealing Frame.
- 10 to 15 Packs Per Minute Output.
- Controlable Sealing Time.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

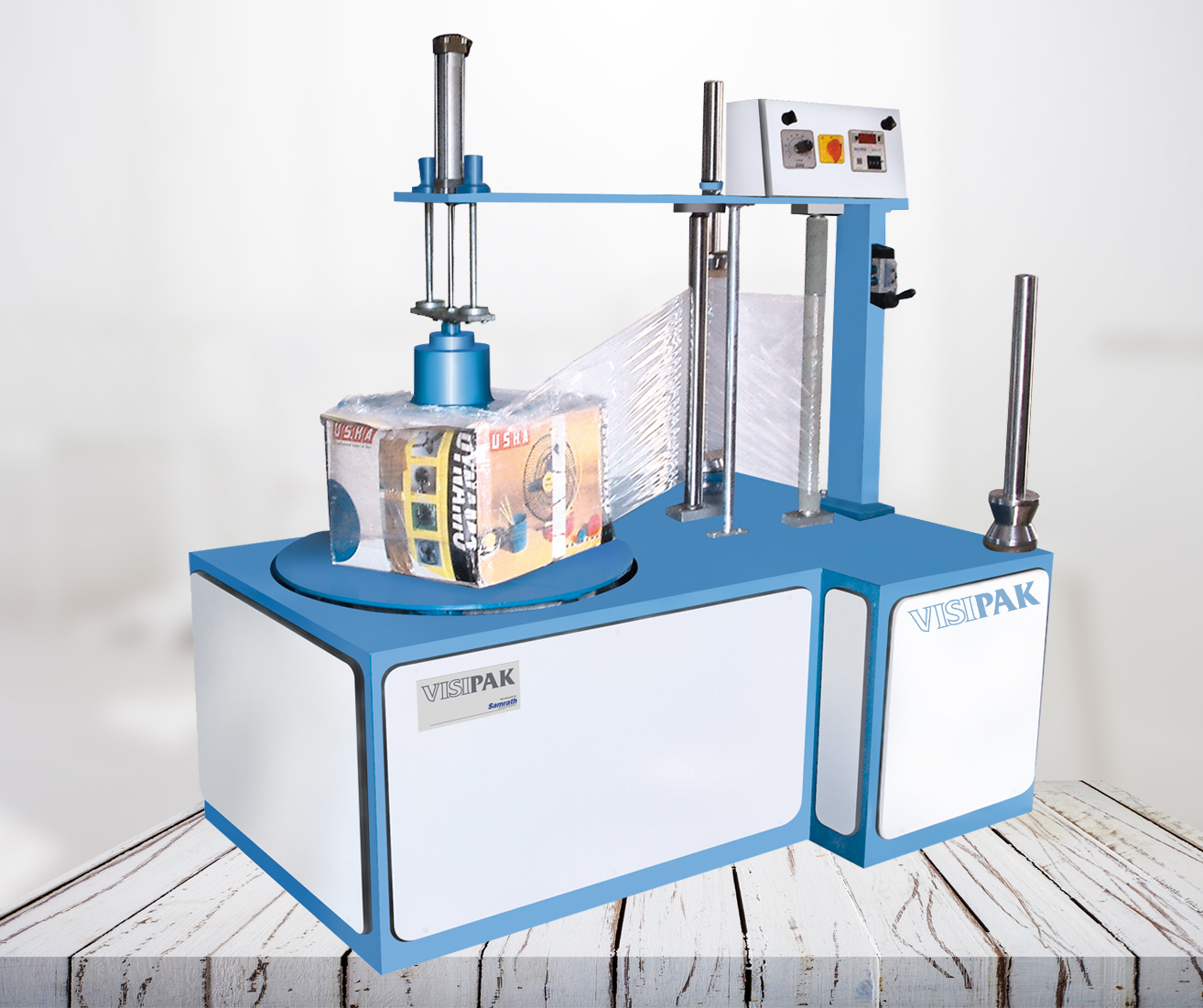

Carton Wrapper Machine
General Features
- Protection from Dust, Moisture and forrign Particles & Pilferage.
- Sturdy Construction.
- Gives Stability to Carton/Reel.
- Save Cost and time.
- Adjustable Wrapping cycle time.
- Variable Turntable Speed.
- Less Power Consumption.
- User Friendly. Less Maintenance.
- Less Maintenance.
- Useful for different Cartons like food, Pharmaceuticals, Garments, Electricals & Electronics, Engineering, Chemicals etc.
| Specifications | Carton Wrapper |
|---|---|
| Carton Size | 24″ X 24″ (Max) |
| Carton Weight | 50KG. (Max) |
| Wrapping Rate | 20 TO 40 Cartons/Hr. |
| Power Req. | 220V Single Phase |
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

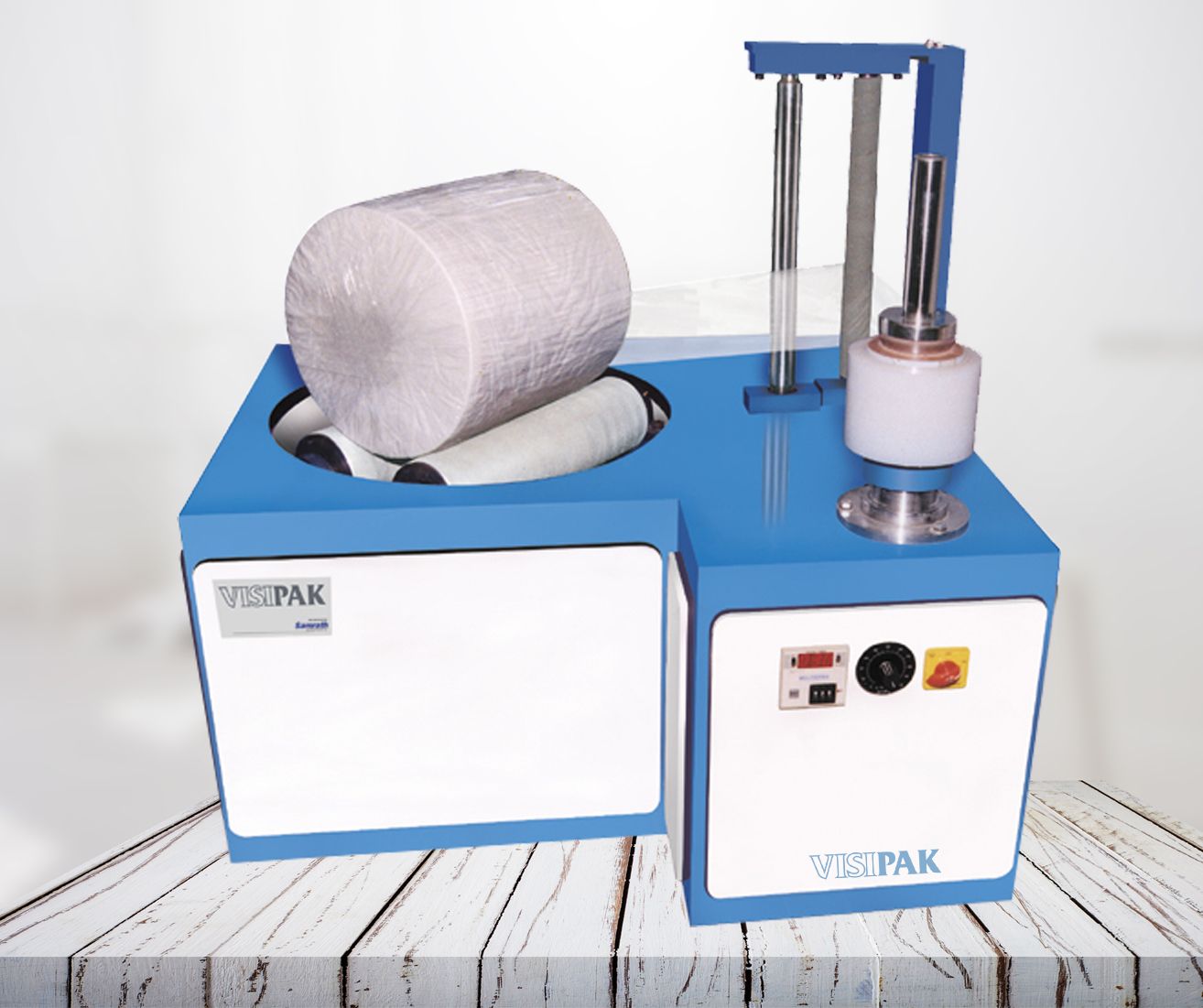

Reel Wrapper Machine
General Features
- Protection from Dust, Moisture and forrign Particles & Pilferage.
- Sturdy Construction.
- Gives Stability to Carton/Reel.
- Save Cost and time.
- Adjustable Wrapping cycle time.
- Variable Turntable Speed.
- Less Power Consumption.
- User Friendly. Less Maintenance.
- Less Maintenance.
| Specifications | Reel Wrapper |
|---|---|
| Reel Diameter | 200 to 600mm |
| Reel Width | 200 to 700mm |
| Reel Weight | 50Kg(Max) |
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

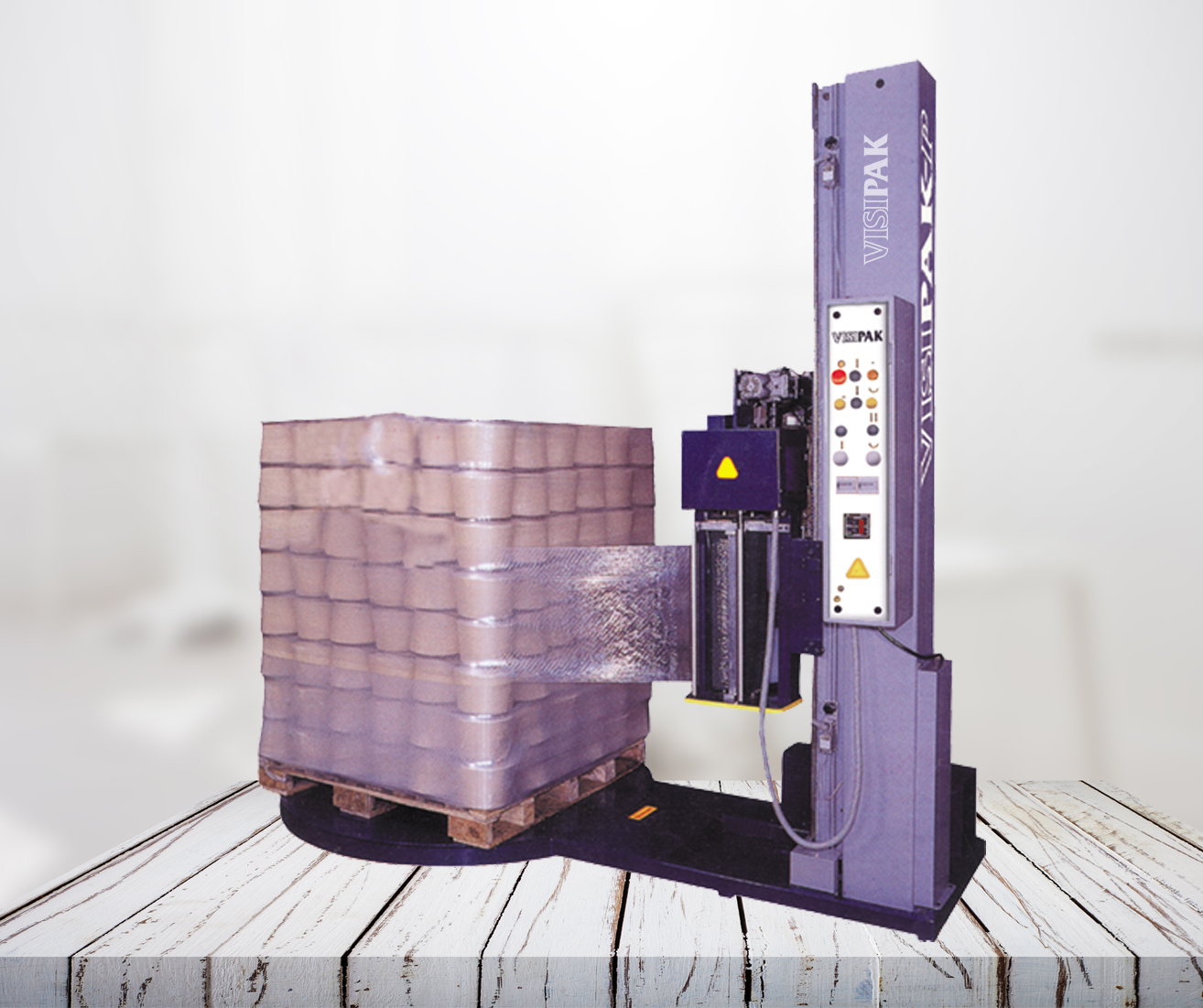

Pallet Stretch Wrapping Machine
General Features
- Protection From Dust, Moisture, Foreign Particles & Pilferage.
- Gives Stability to Pallets.
- Save Cost and time.
- Sturdy Construction.
- Automatic Wrapping Cycle.
- Variable turn Table Speed, top & Bottom Wraps, Variable Overlap and variable Stretch.
- Less Power Consumption.
- Less Film Consumption.
- Less Maintenance.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

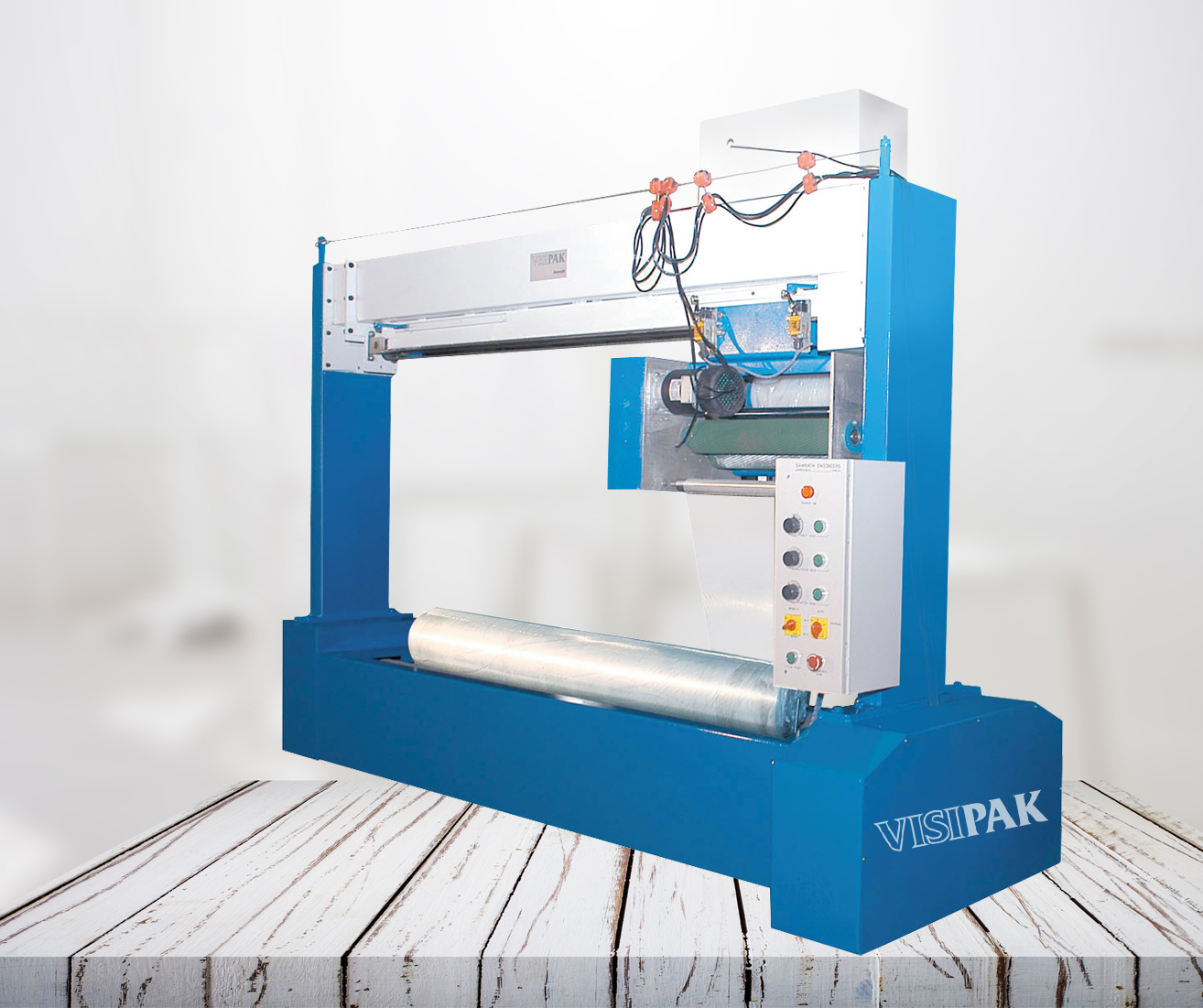

Fabric Roll Wrapper Machine
General Features
- Automated Wrapping cycle.
- Saves Time and Labour.
- Easy Loading and Unloading of Roll.
- Cost Effective Against Shrink Wrapping.
- Power Pre-stretch for Less Film Consumption.
- Variable Speed for Roller, Stretch and Overlaping.
- Less Maintenance.
- User Friendly.
- Suitable for Fabric Roll Like Denim, Furnishing and Carpet.
- Suitable for Different Cloth Width.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS
Spiral Wrapper for Wooden Door
General Features
- Sturdy Construction.
- Less Maintenance.
- Protection From dust, Moisture and Forein Particles & Pilferage.
- Adjustable Film Overlapping.
- Adustable cycle time.
- Custom Made Design for Various Application.
- Useful for Tubelight bundle, Plastic / Metal Pipe Bundle, Aluminum Section, Section, Wooden Section, and any Other Long Materials.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

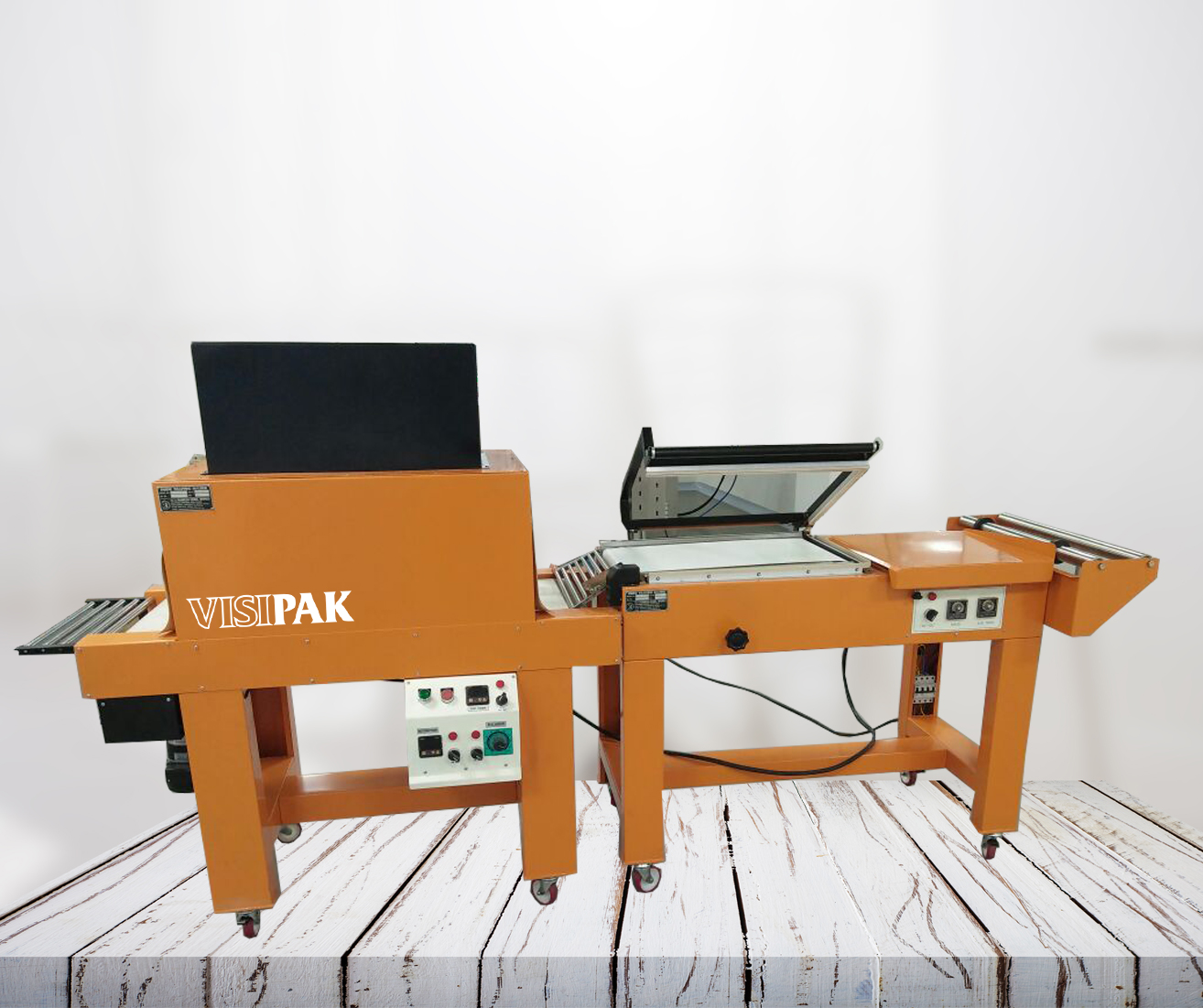

Auto Transfer L-Sealer with Shrink Tunnel
General Features
- Combine L-type sealer and shrink tunnel work together to finish seal-cut and shrink packing of film in one operation.
- Electric magnet to absorb cutting frame automatically when the frame is pressed down.
- The object is automatically transmitted into a shrink tunnel through the conveyor when the film is cut.
- Adopt a digital temperature controller with a PID function.
- Installation and test report to be provided.
- The cost of the equipment should include Freight & Installation charges.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

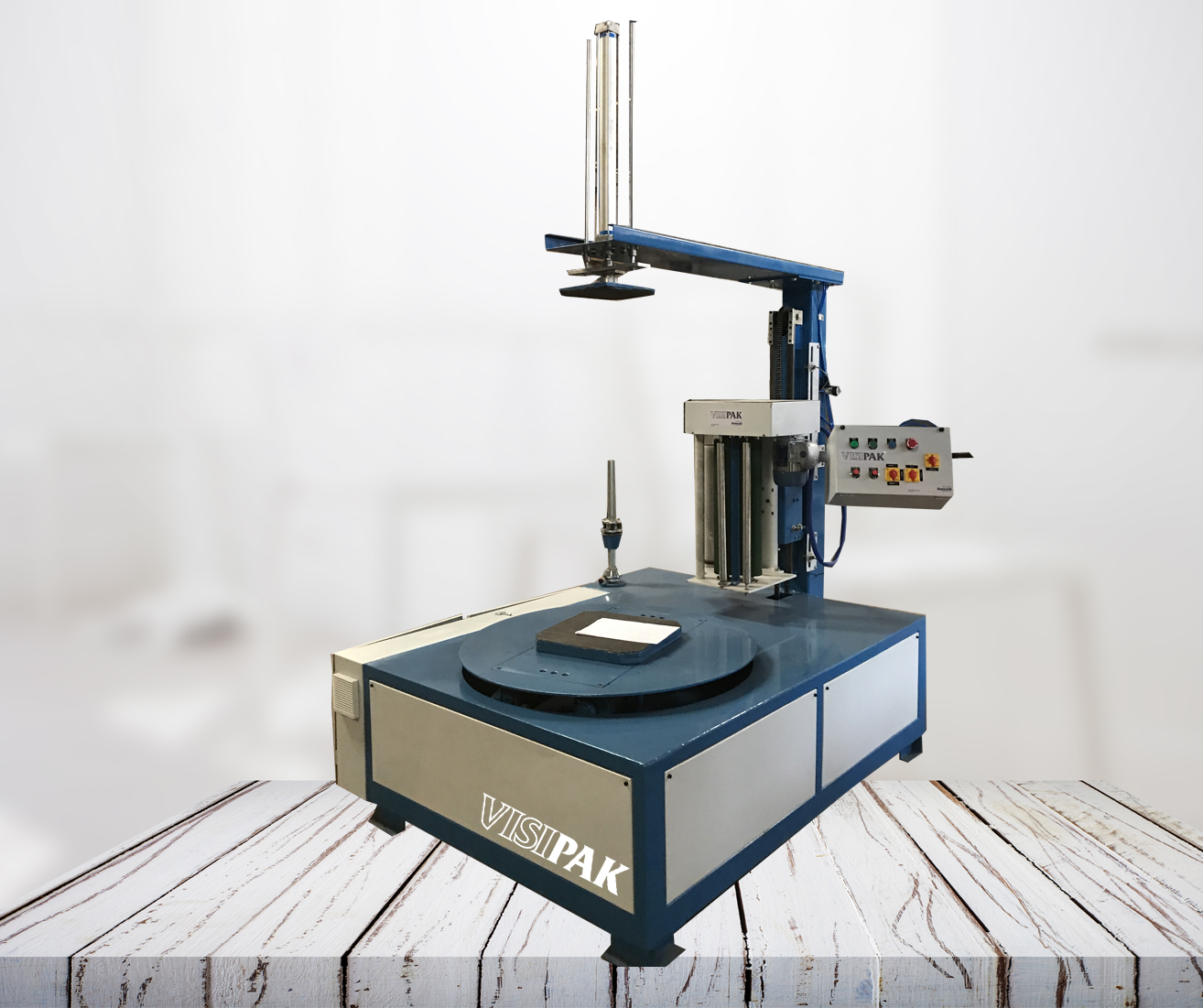

Carton Wrapper With Pre stretch
General Features
- Protection From Dust, Moisture, Foreign Particles & Pilferage.
- Gives Stability to box.
- Save Cost and time.
- Sturdy Construction.
- Automatic Wrapping Cycle.
- Variable turn Table Speed, top & Bottom Wraps, Variable Overlap, and variable Stretch.
- Less Power Consumption.
- Less Film Consumption.
- Less Maintenance.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

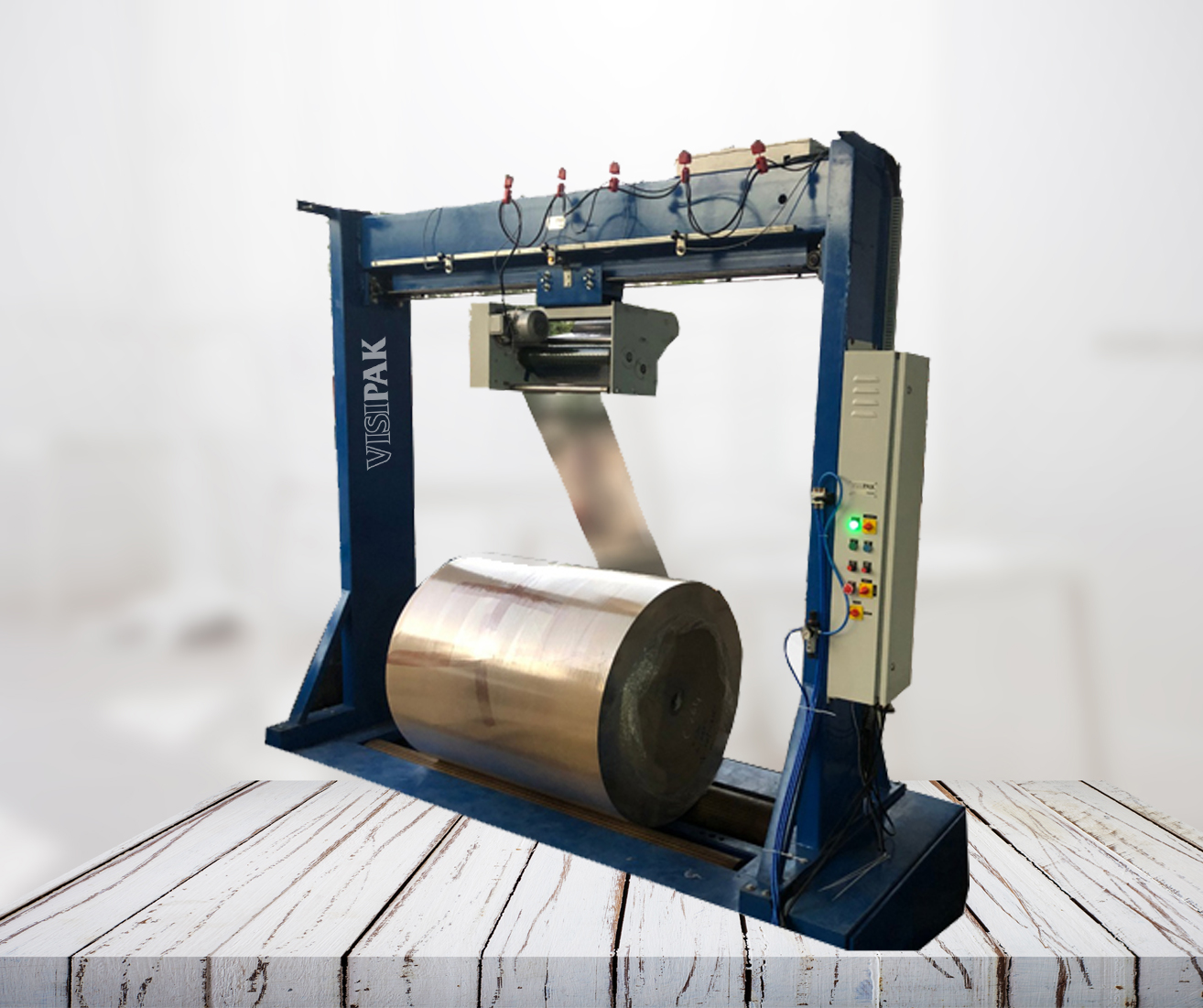

Paper Roll Wrapper Machine
General Features
- Automated Wrapping Cycle.
- Saves Time and Labour.
- Easy Loading and Unloading of Roll.
- Cost Effective Against Shrink Wrapping.
- Power Pre-stretch for Less Film Consumption.
- Variable Speed for Roller, Stretch and Overlapping.
- Less Maintenance.
- User Friendly.
- Suitable for Fabric Roll Like Denim, Furnishing and Carpet.
- Suitable for Different Cloth Width.
- Product weight/Roll 300kgs. To 800kgs.
- Product Roll Diameter: 300-1000mm
- Product Roll Width: 500-1500mm
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS
Coil / Tyre Wrapper
General Features
- Sturdy Construction.
- Less Maintenance.
- Protection From dust, Moisture and Forein Particles & Pilferage.
- Adjustable Film Overlapping.
- Adjustable cycle time.
- Custom Made Design for Various Application.
- Useful for Tyre, Braided Pipe Coil, Metal Pipe Coil, Wire Bundle, cycle and Motor cycle Rims.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS

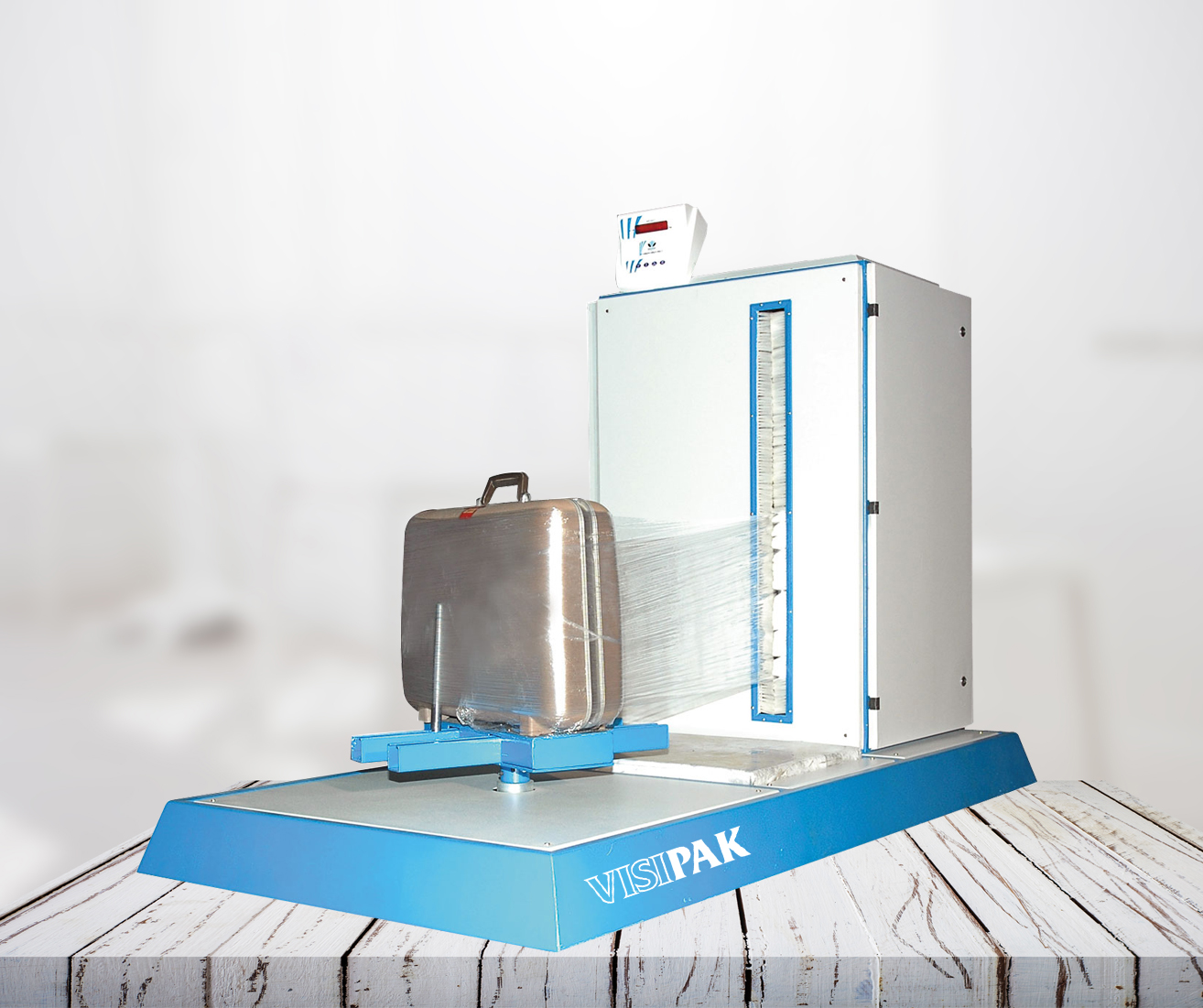

Baggage Wrapper
General Features
- Protection From Pilferage.
- Sturdy Construction.
- Automatic Wrapping Cycle.
- Adjustable Holders to hold the Bagage.
- Less Maintenance.
- Power Pre-Stretch up to 200%
- Less Power Consumption, Run on Single Phase Power Supply.
- Output 50-60 Pack/hr.
- Useful at Airport, Suitable for Computer Box, Baggage.
MACHINES CAN BE MADE AS PER SPECIFIC REQUIREMENTS
